The solid state relays SSR can be used for different air heaters depending on the model. The SSR single-phase, solid-state relay can be used to control the LHS 15/21/41 Classic, LHS 210/410 and LE MINI/LE MINI Sensor air heaters. The three-phase, solid state relay SSR is suitable for the LHS 41/61 Classic, LHS 410 and for all LE 5000/10000 air heaters.
They are driven by a PWM signal provided by the CSS, E5CC or a PLC.
Technical Data
Metric
Imperial
Article
173.257
Item name

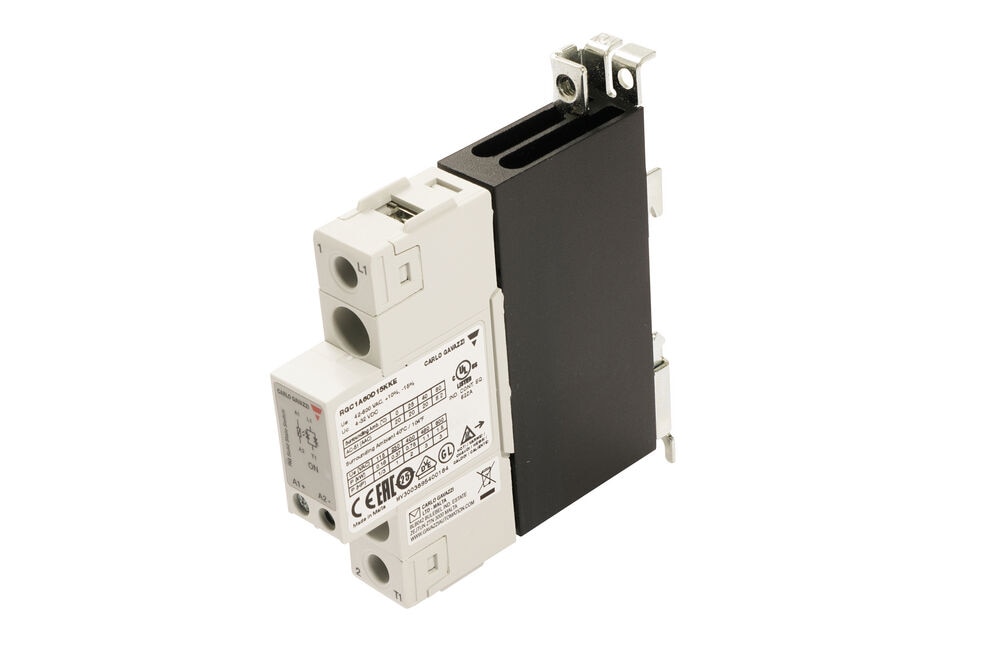

Solid state relay (SSR), 600V/20A
Phases
1x
Voltage
42 - 600 V
Current
20 A
Frequency
50/60 Hz
Interfaces
PWM
Ambient temperature
-40 - 80 °C
Length
110 mm
Width
17.8 mm
Height
103 mm
Weight
0.26 kg
Additional description
Suitable for LHS 210/410, LHS 15/21/41 CLASSIC and LE MINI/LE MINI SENSOR
