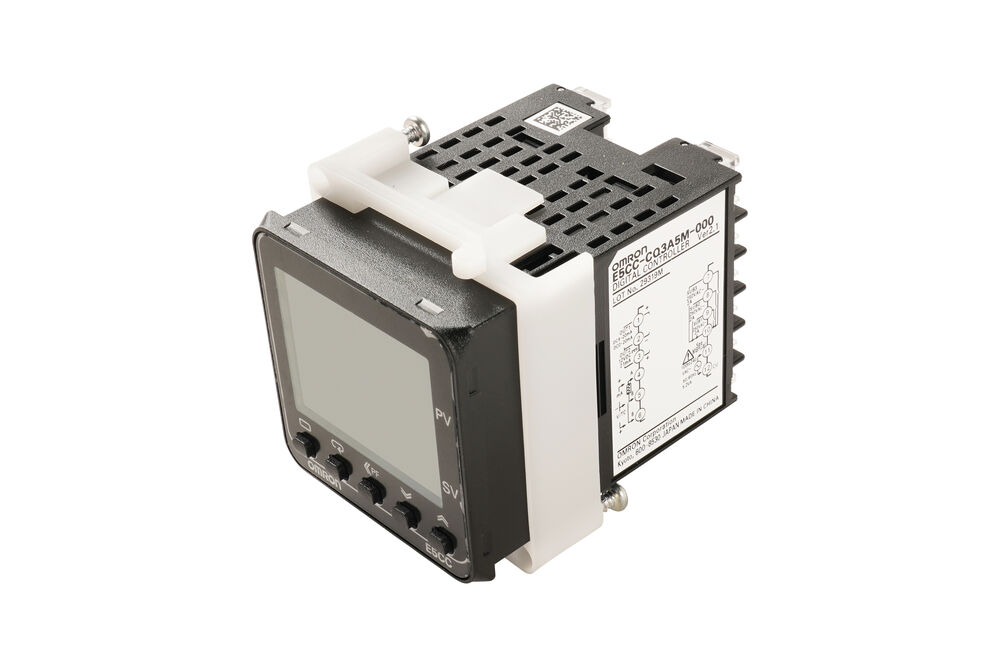

The E5CC temperature controller precisely controls the air temperature on Leister's air heaters and hot air blowers. The display of the target and actual temperature, as well as two freely programmable alarm outputs, are integrated.
Technical Data
Metric
Imperial
Article
137.720
Item name
E5CC temperature controller, 100-240V
Phases
1x
Voltage
100 - 240 V
Frequency
50/60 Hz
Temperature sensor Type
K; N; PT100; S
Output signals
4-10mA; PWM
Control behaviour
PID
Length
66 mm
Width
48 mm
Height
48 mm
Weight
0.1 kg
Plug
without plug
Additional description
With SSR suitable for LE DF, LHS 210/410, LHS CLASSIC, LE HT and MISTRAL
