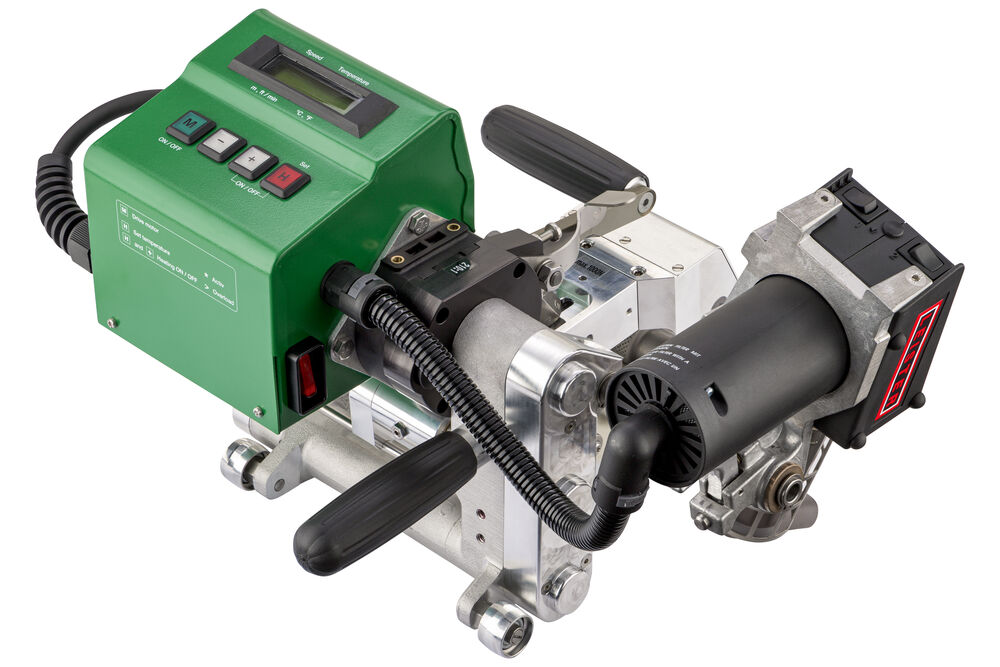

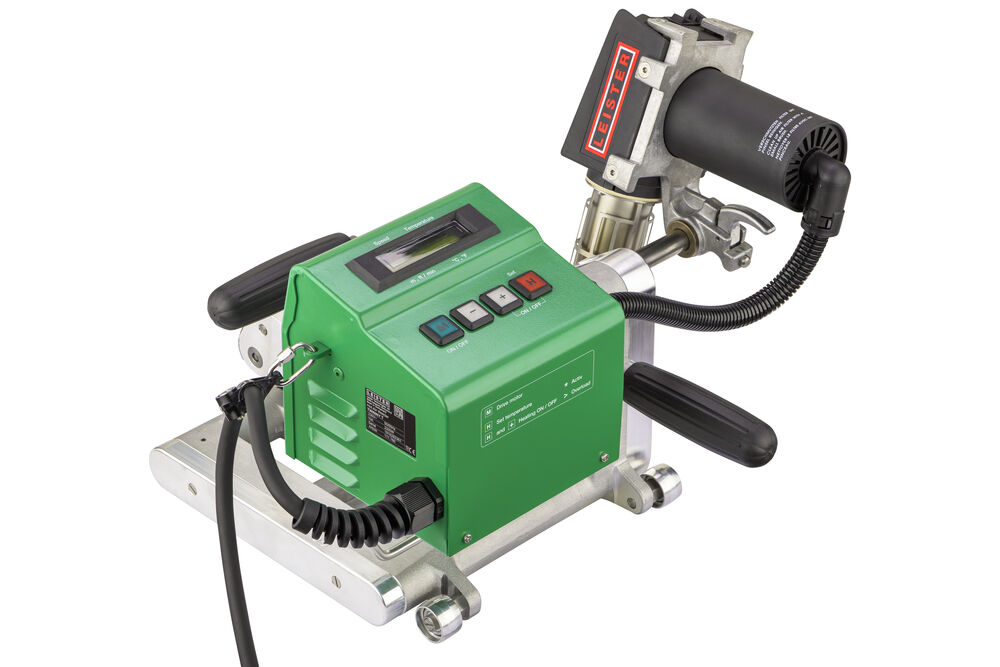

TWINNY T

TWINNY T

Product Details

Compare

Print

Share

CHANNELS

Technical Data

Metric

Imperial

Voltage

230 V

Frequency

50/60 Hz

Power

2300 W

Temperature

0 - 560 °C

Air volume adjustable

The air volume can be adjusted on the device

Yes

Speed

0.8 - 3.2 m/min

Welding Technology

Combi-wedge

Combi-wedge version

Long for material thickness ≥ 1.5 mm Short for material thickness < 1.5 mm

Short

Hot wedge width

50 mm

Hot wedge material

Stainless steel

Max. overlap

125 mm

Max. welding pressure

1000 N

Weld seam width

2 x 15 mm / 2 x 0.59 in

Roll material

Steel roller sharp diagonal

LQS

The device features LQS (Leister Quality System) data recording

No

Brushless blower motor

No

Display

Yes

Length

340 mm

Width

360 mm

Height

245 mm

Weight

7.2 kg

Welding materials

CSPE; EPDM; FPO; HDPE; LDPE; LLDPE; PP; PVC; TPO

Plug

EU, 3 poles, 16A

Power cable length

3 m

Approvals

CE

Protection class

I

Country of origin

Switzerland

Applications

Virtually unlimited

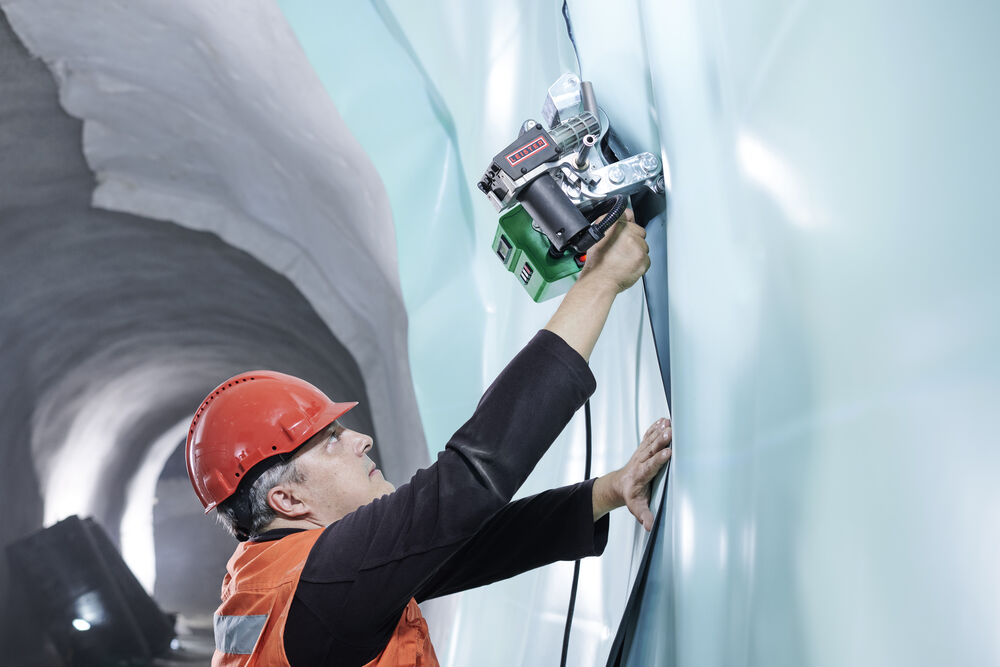

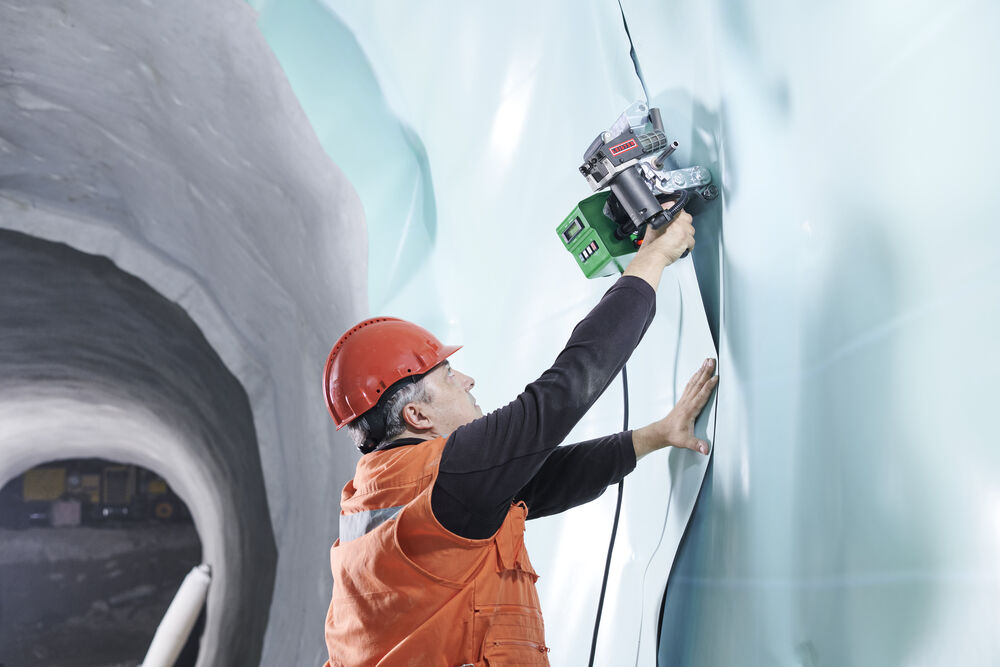

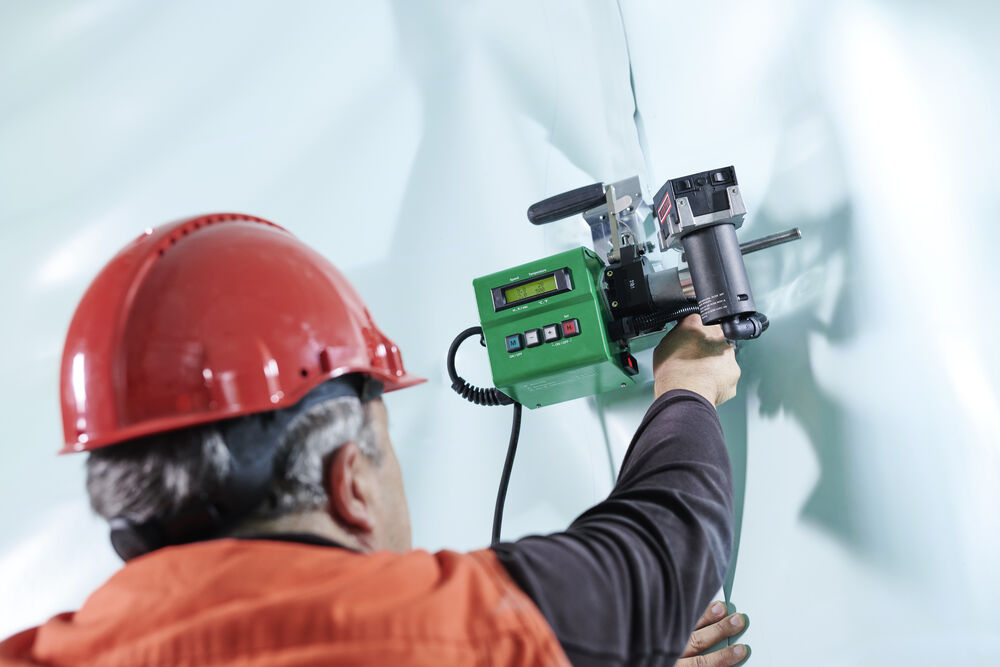

Tunnel waterproofing

Tunnel waterproofing

Accessories

Easy to fit

Downloads

Everything You Need on Hand

Info

Type All

All
Operating instructions
Safety instructions
Technical datasheet
Certificates

Language English

Select All (4)

Certificates (1)

CE Declaration of Conformity - TWINNY TENpdf

Operating instructions (1)

TWINNY TDE, EN, IT, FR, ES, ...pdf

Safety instructions (1)

Automatic welders, Extrusion welders, Welding machinesDE, EN, IT, FR, ES, ...pdf

Technical datasheet (1)

TWINNY TENpdf
