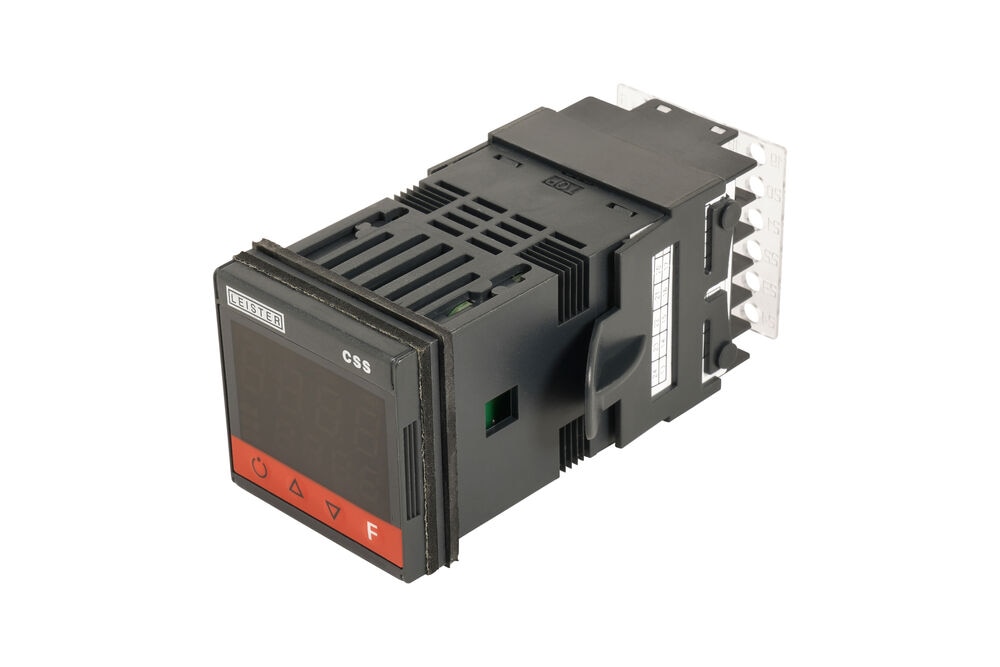

The CSS temperature controller can be used anywhere and precisely controls the air temperature of air heaters and hot air blowers. Accuracy is 0.2% better than the scale value at 25 °C / 77 °F. Perfect together with the LHS System family and LE MINI SENSOR from Leister. Configured for LHS SYSTEM air heaters, enabling it to be installed in the blink of an eye. It is connected to the chosen air heater with screw terminals.
Technical Data
Metric
Imperial
Article
123.039
Item name
CSS
Phases
1x
Voltage
100 - 240 V
Frequency
50/60 Hz
Temperature sensor Type
K; PT100; S
Output signals
0-10V; 24VDC; 4-10mA; PWM
Control behaviour
PID
Length
109 mm
Width
48 mm
Height
48 mm
Weight
0.2 kg
Plug
without plug
Additional description
With SSR suitable for LE DF, LHS CLASSIC and LE HT
