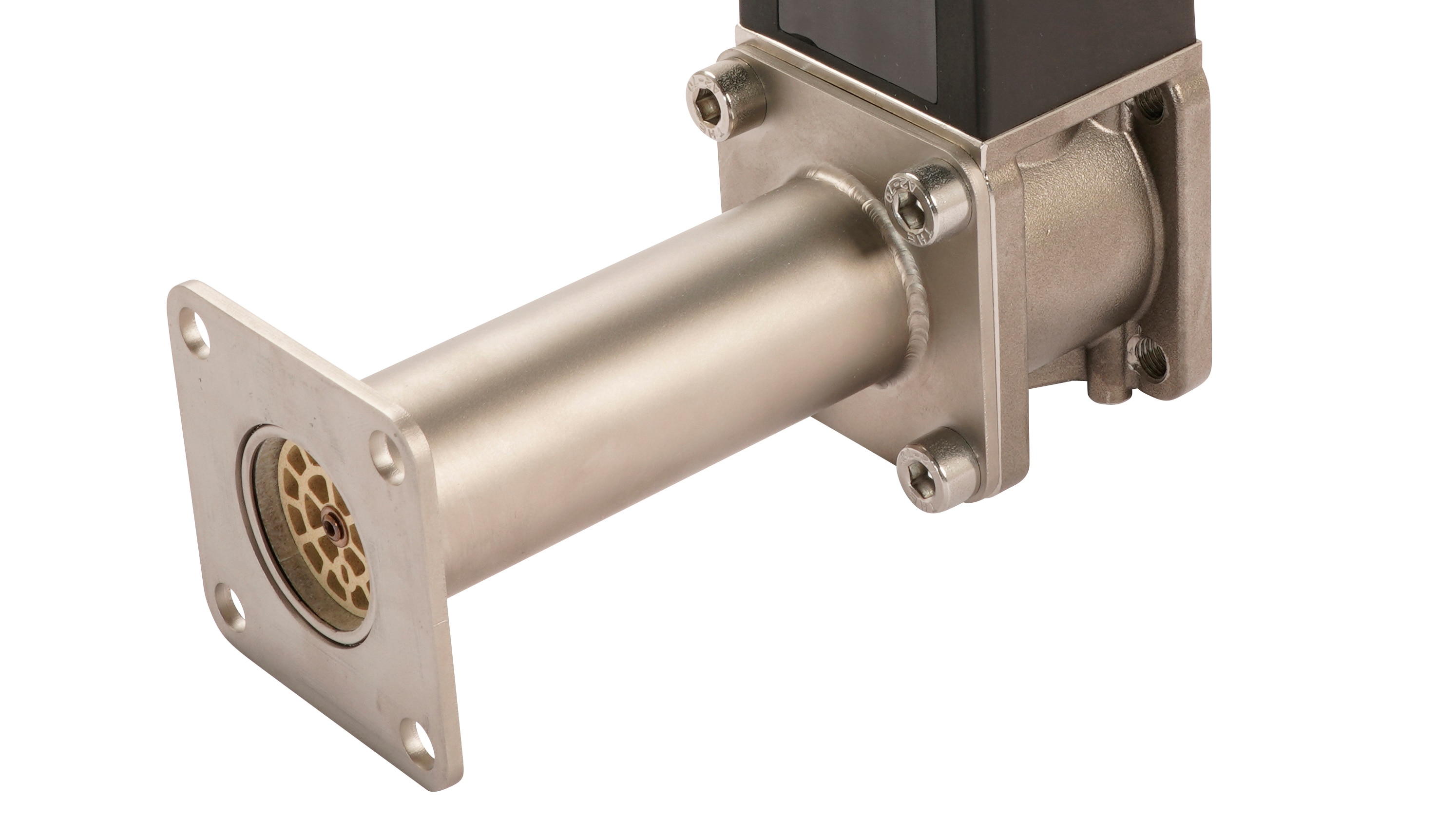

The LHS 210 DF (DF stands for Double Flange) air heater is Leister's smallest double flange air heater. Due to its particularly compact design, it can be easily integrated into industrial plants with limited space. The connection to the power supply is also very easy with this air heater due to its sophisticated design.
Technical Data
Metric
Imperial
Article
170.922
Phases
1x
Voltage
230 V
Current
9 A
Power
2000 W
Max. air outlet temperature
650 °C
Min. airflow
Required minimum air volume at 100% heating power and an air inlet temperature of 20°C / 68°F
160 l/min
Max. air inlet temperature
100 °C
Max. ambient temperature
65 °C
Overheating protection
No
Max. inlet pressure
100 kPa
Display
No
Length
168 mm
Width
67 mm
Height
175 mm
Weight
1.25 kg
Approvals
CE; S+; cURus
Protection class
I
Highlights
Small and robust
Extremely small
Leister's smallest double flange air heater

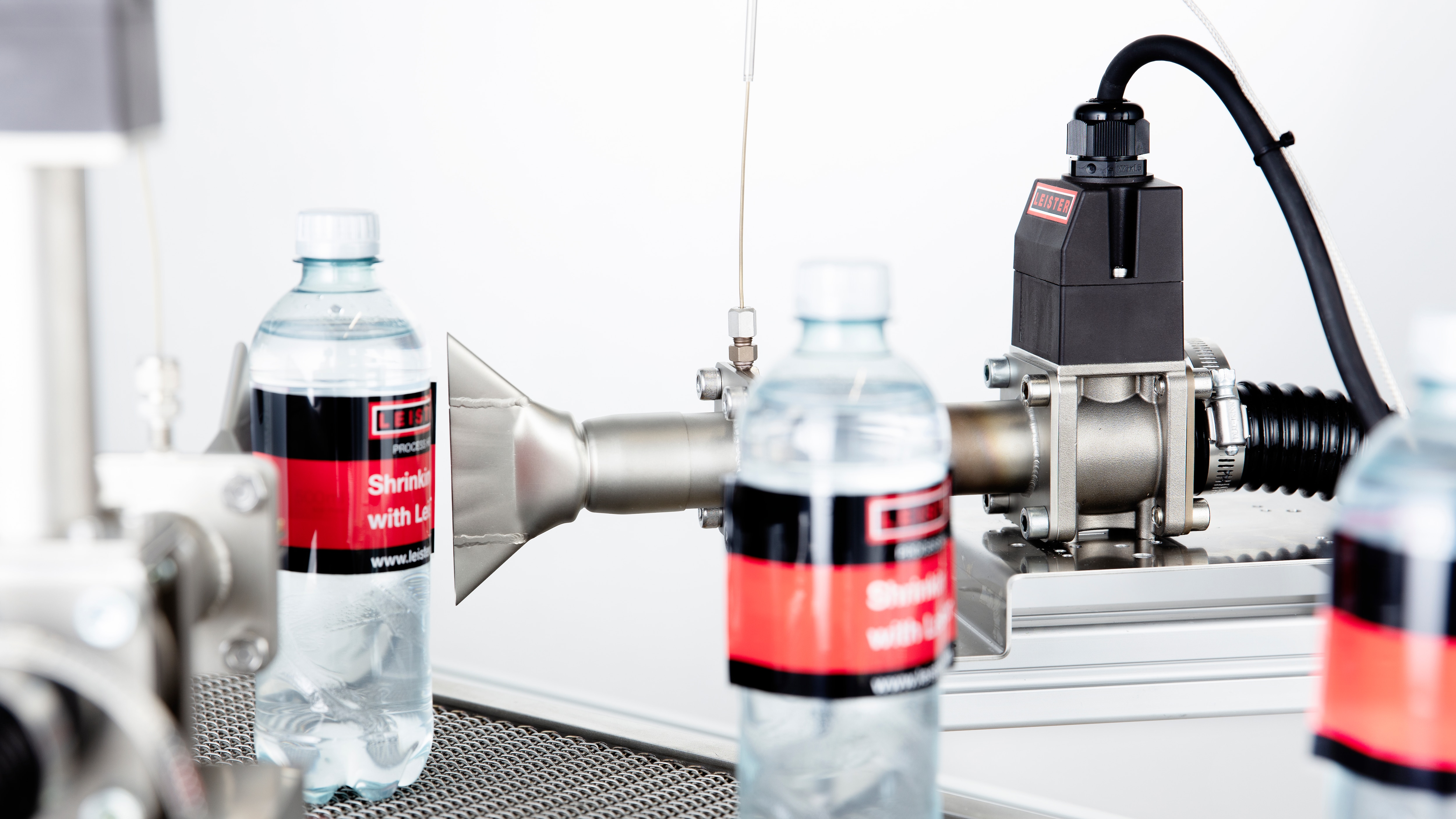

The LHS 210 DF is the smallest double flange air heater from Leister. Thanks to its compact design, it can be easily integrated into various industrial processes where space is limited.
Reliable
Hardly any loss in pressure with unhindered air flow
The housing connection on the LHS 210 DF double flange air heater is outside the air flow, which is why the air flows through the air heater unhindered and with very little loss in pressure.
Versatile

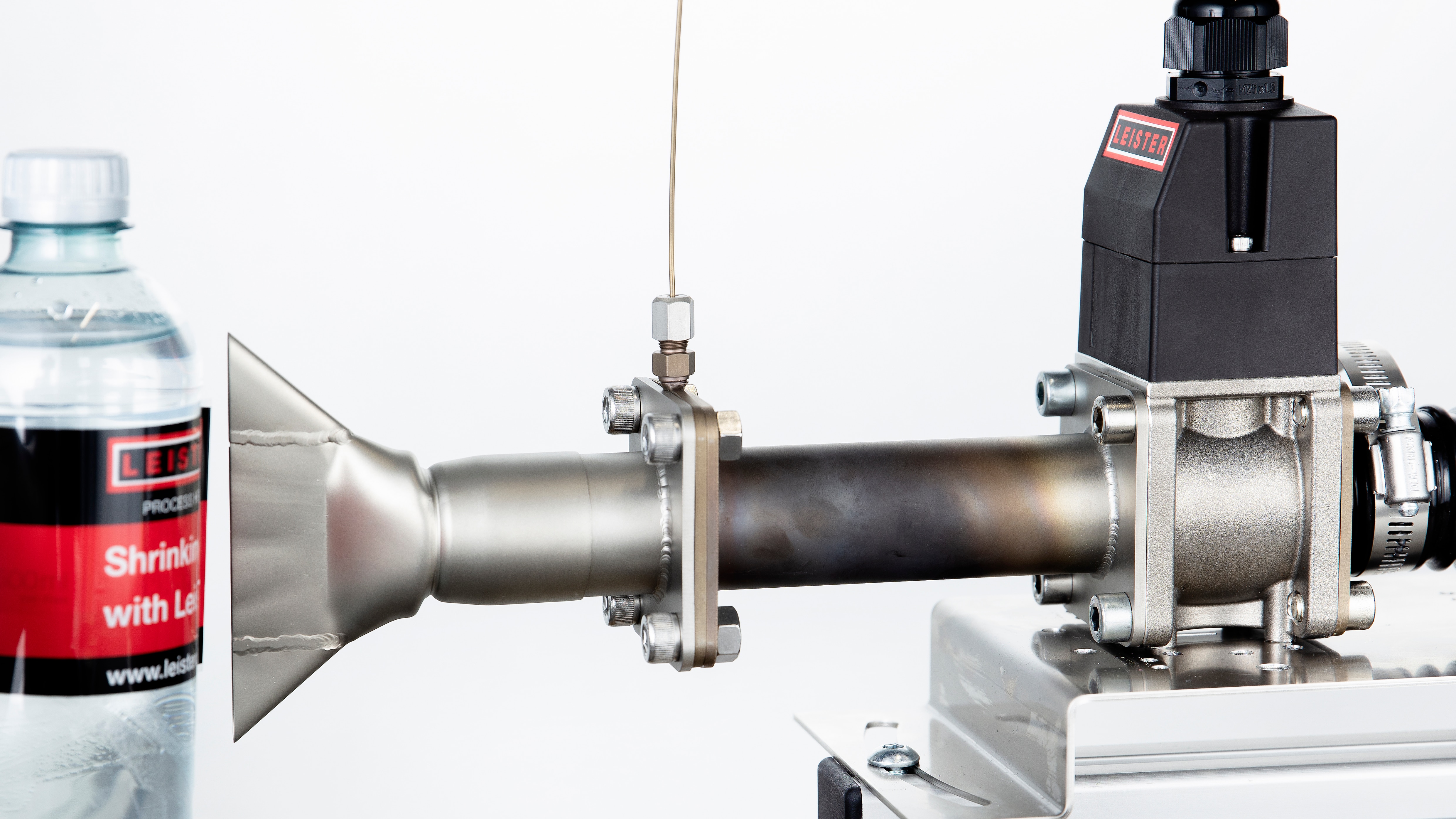

Double flange for piping installations
Thanks to its flanges on both sides, the Leister LHS 210 DF tubular air heater is easy to install in piping systems and is suitable for a wide range of industrial processes and applications.
