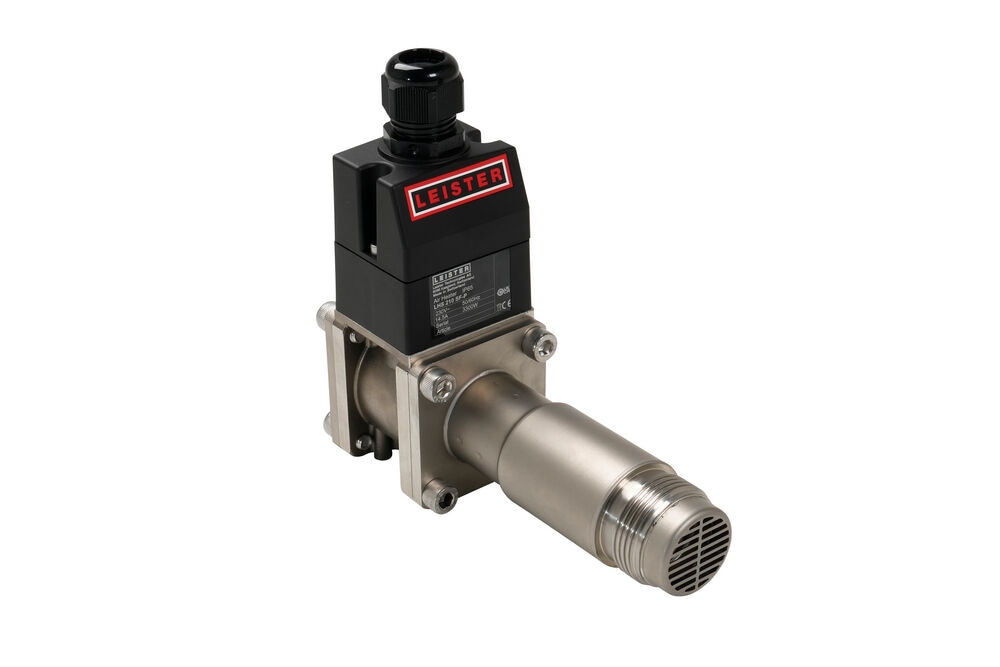

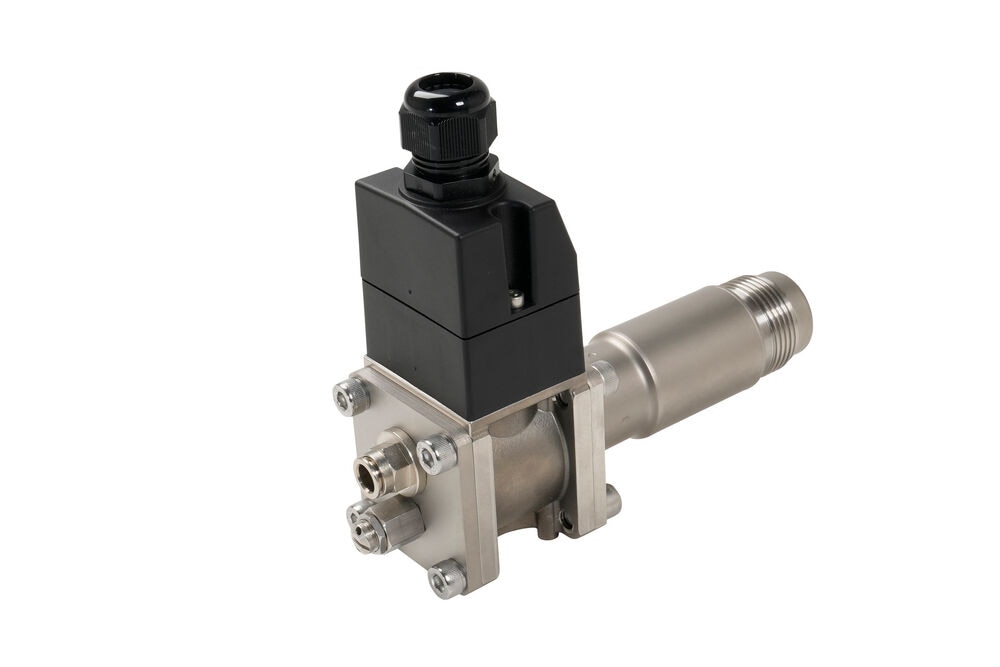

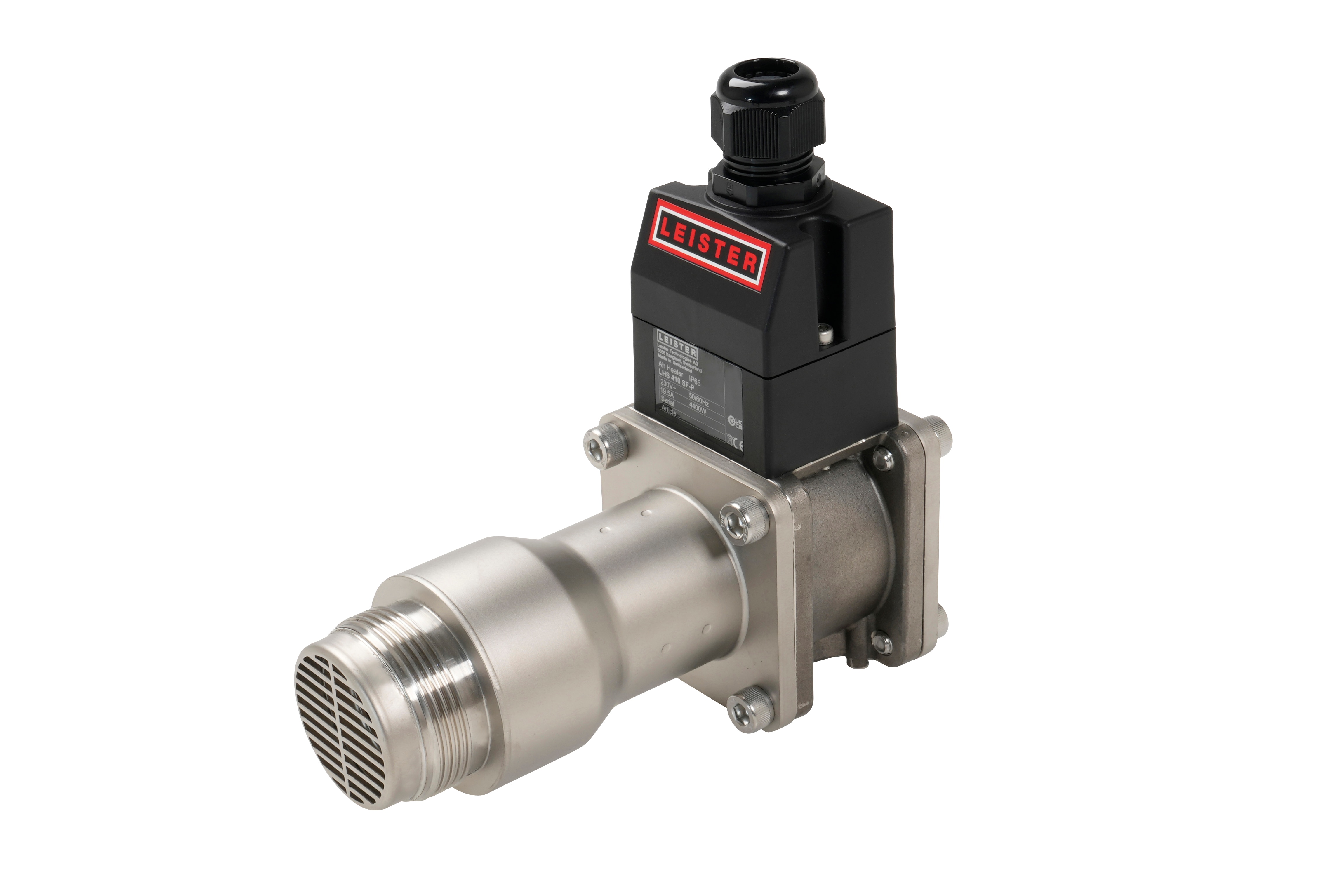

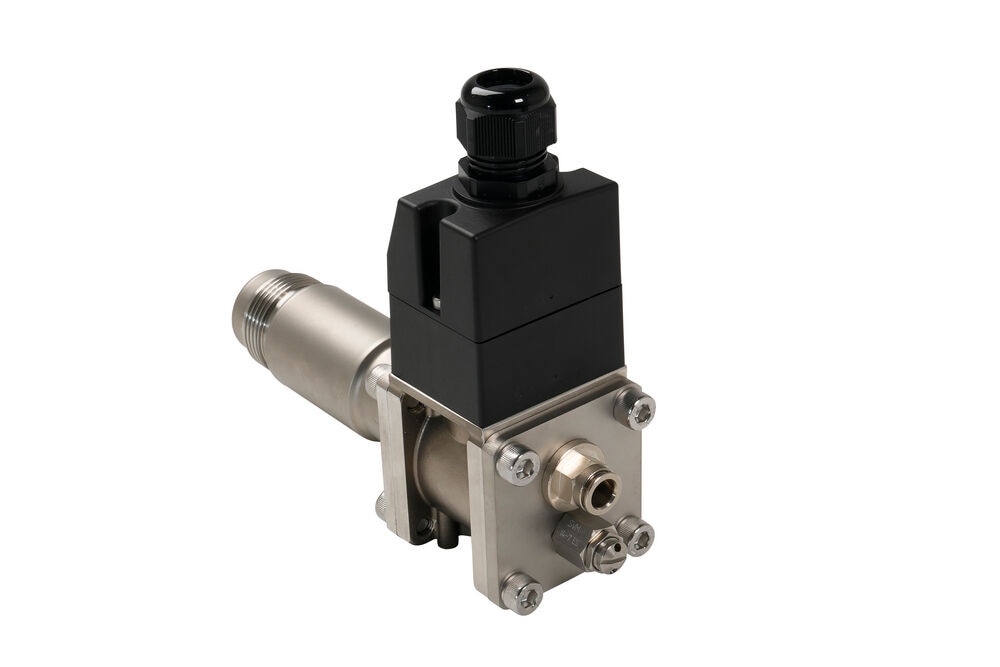

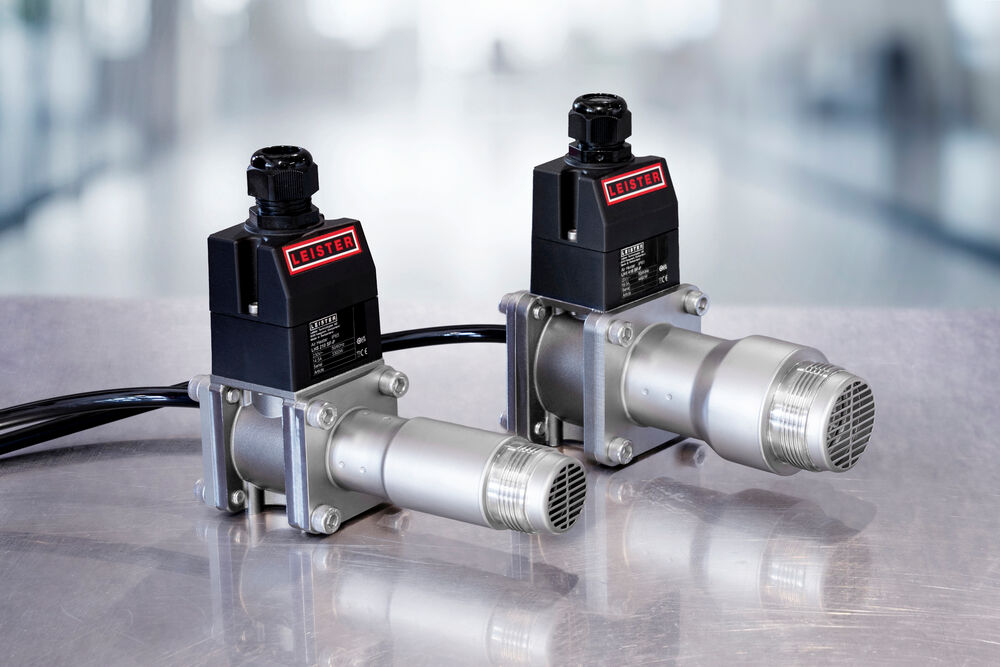

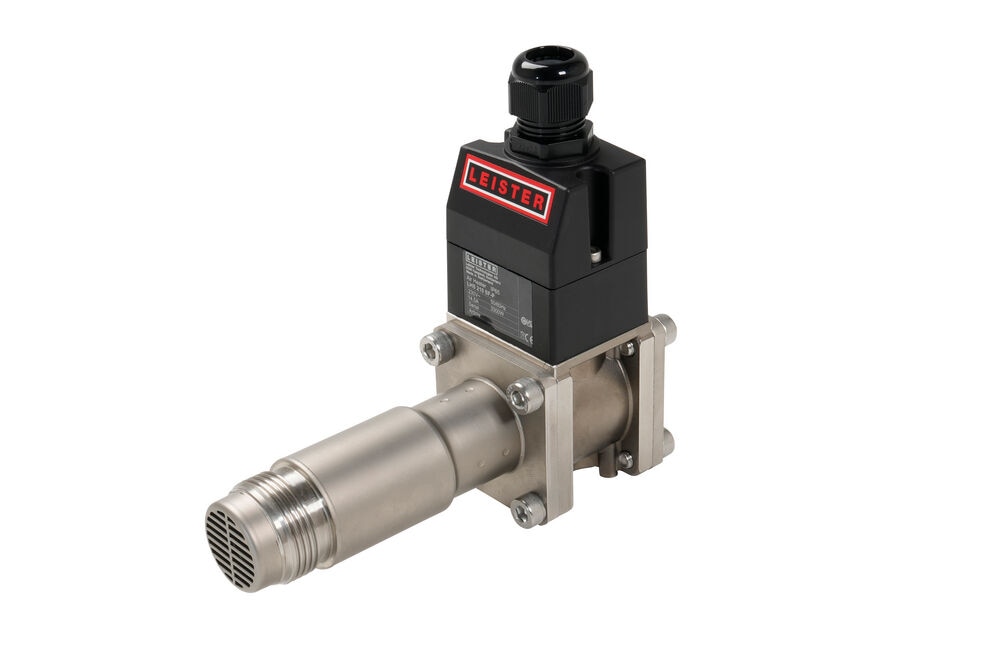

Together with the LHS 410 P, the LHS 210 P is the first compressed air heater from Leister to achieve an operating pressure of up to 6 bar. Its reinforced housing makes it particularly pressure-resistant. It is operated with compressed air, so no blower is required. Due to its compact design, it is ideally integrated into industrial systems with limited space. In addition, the power connection housing allows for easy and quick installation.
Technical Data
Metric
Imperial
Phases
1x
Voltage
230 V
Current
9 - 14.5 A
Power
2000 - 3300 W
Max. air outlet temperature
650 °C
Min. airflow
Required minimum air volume at 100% heating power and an air inlet temperature of 20°C / 68°F
160 - 250 l/min
Max. air inlet temperature
100 °C
Max. ambient temperature
65 °C
Overheating protection
No
Max. inlet pressure
600 kPa
Display
No
Length
178 mm
Width
64.5 mm
Height
175 mm
Weight
1.65 kg
Approvals
CE
Protection class
I
Highlights
Compact and designed for compressed air
compact and robust
Easy to integrate into processes
Compact and robust, the LHS 210 P is easily integrated into industrial processes. Its reinforced housing allows operation up to 6 bar.
pressure-resistant
Designed for up to 6 bar working pressure
The LHS 210 P is designed for a maximum operating pressure of 6 bar. The air inlet flange of the unit has an additional relief valve that vents the unit at higher pressures.
modular
Quick conversion
Thanks to the screw thread, the air heater can be quickly converted or refitted with different adapters. This makes the LHS 210 P particularly versatile.
