Leister's flicker chip is used to control electric heaters up to ≤ 4kW. The PMS01C circuit provides a cost-effective and flexible solution due to its ease of integration. Thanks to the integrated ASIC circuit, additional software is not required, making software updates unnecessary. The pulse pattern control switch on the Triac precisely controls the heating power. This limits mains perturbations to a standard-compliant level (EN61000-3-2 and EN61000-3-3).
Technical Data
Metric
Imperial
Package Type

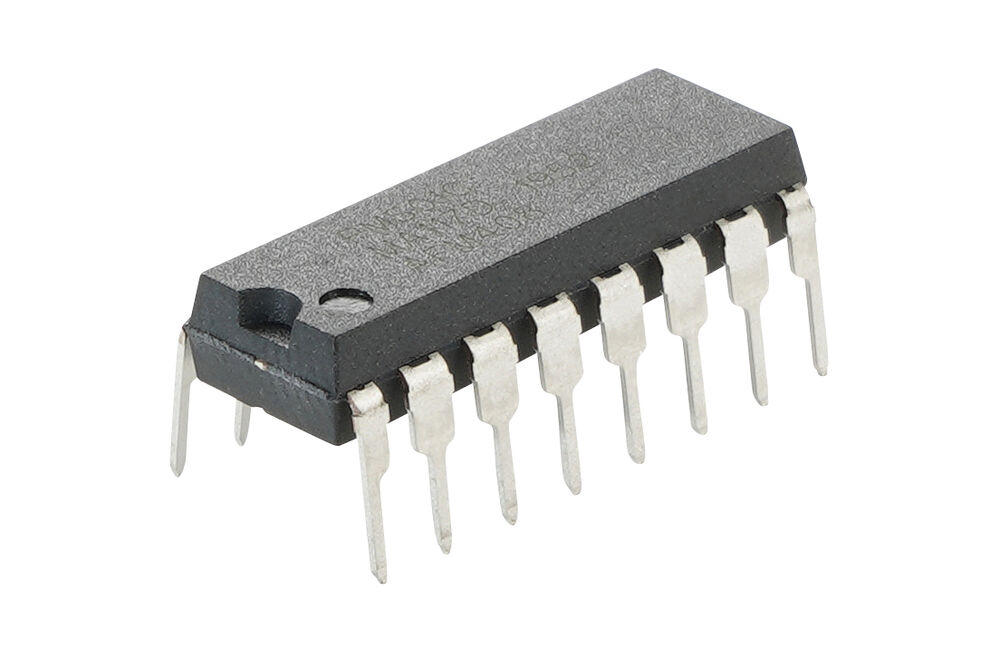

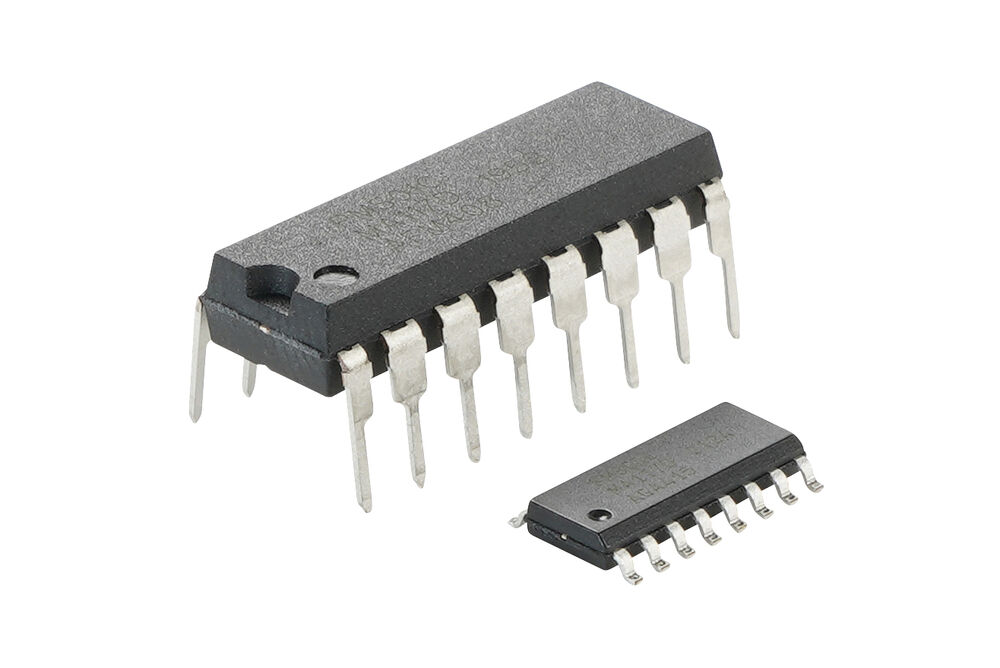

DIL16; SOP16
Interface temperature control
Yes
Ambient temperature
-20 - 85 °C
Country of origin
Malaysia; Taiwan
Highlights
robust and reliable
no additional software necessary
highly integrated circuit
complies with EN61000-3-2 and EN61000-3-3 standards
