KRELUS G11-12 SUPER-MINI

KRELUS G11-12 SUPER-MINI

Modular structure
Low-maintenance and reliable
Can be used without cooling or reflectors
Power density up to 60 kW/m² respectively 38.7 W/in²

Product Details

4 variants

Compare

Print

Share

CHANNELS

Details

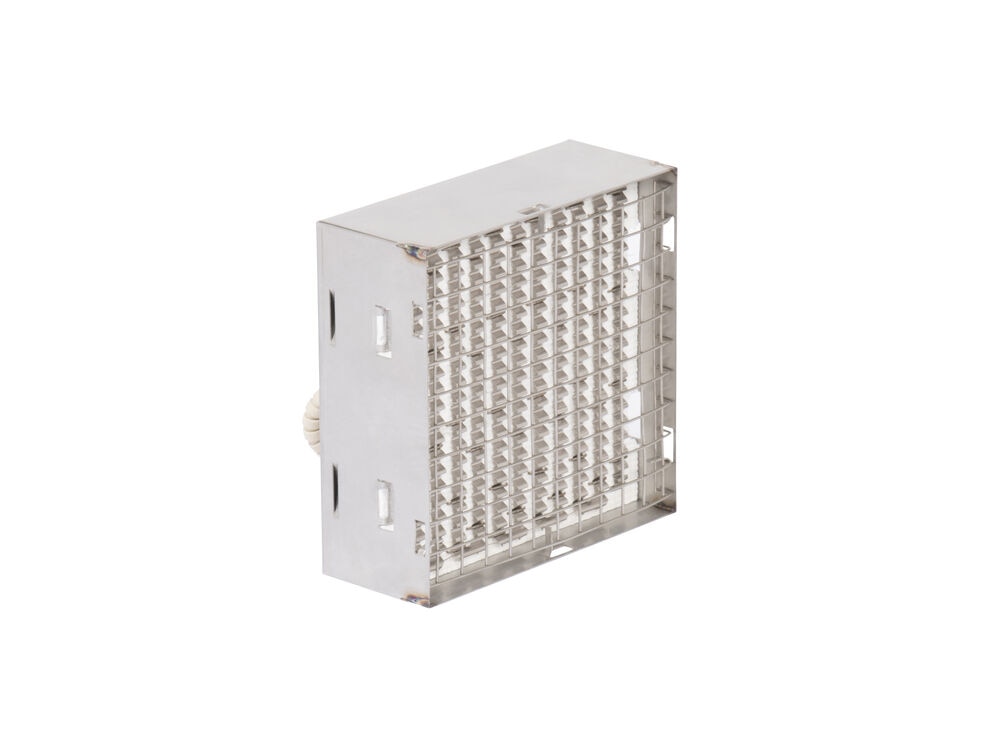

Extra-small, square IR radiator

At only 123 x 123 x 50 mm / 4.84 x 4.84 x 1.9 in, the square KRELUS G11-12 SUPER-MINI panel heater can even be used on smaller areas. Like the other KRELUS modular heaters, these can also be used standalone or in combination.

Technical Data

Metric

Imperial

Voltage

77 V

Current

7 - 12.5 A

Frequency

50/60 Hz

Power

540 - 960 W

Power density

34.56 - 61.44 kW/m²

Max. ambient temperature

500 °C

Pyrometer hole position

Standard; Without

Length

123 mm

Width

123 mm

Height

50 mm

Weight

0.6 kg

Approvals

CE

Protection class (IEC 60529)

IP20

Protection class

I

Highlights

Strong IR fields

Square form easy to deploy

Heating directly available

Direct temperature control

Applications

Virtually unlimited

Drying process

Embossing process

Embossing process

Laminate process

Laminate process

Thermoforming process

Thermoforming process

Coating process

Coating process
