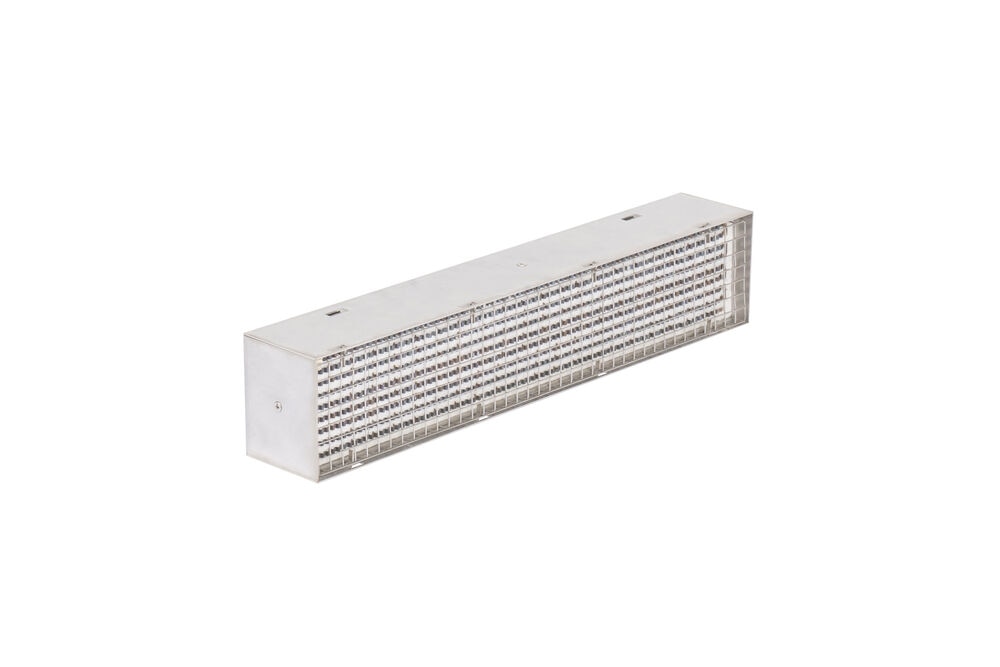

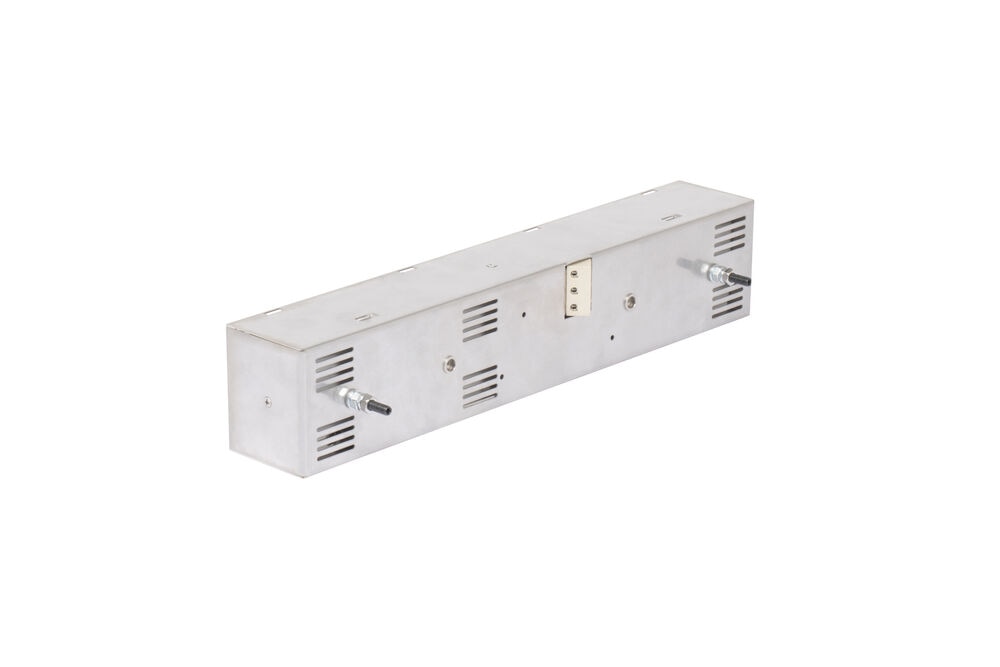

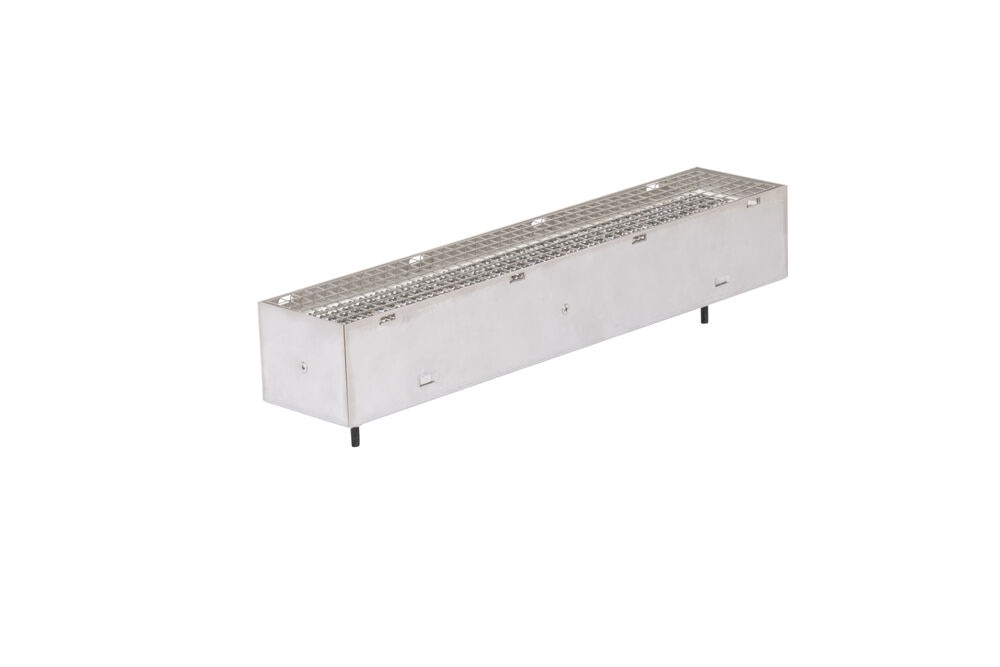

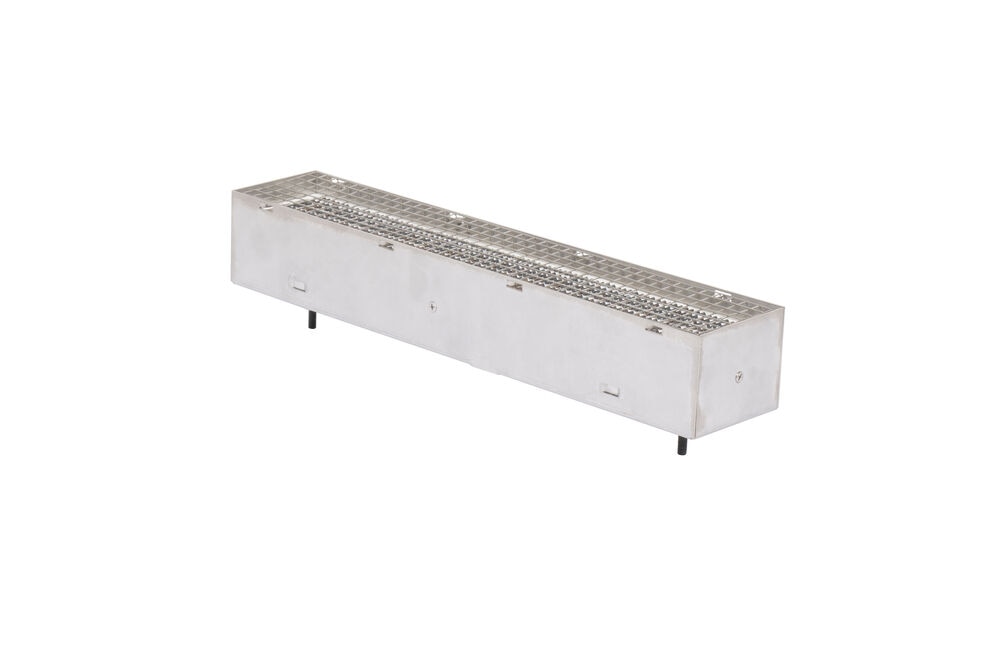

The KRELUS G9-40 MINI MINI infrared heater from Leister can be integrated perfectly thanks to its small size. The response time for this infrared heater module is very short. Infrared radiation is emitted in the medium-wave range, with a wavelength peak of 2.5 µm. This IR heater can therefore be used for most infrared applications.
Technical Data
Metric
Imperial
Voltage
220 - 240 V
Current
4.2 - 4.6 A
Frequency
50/60 Hz
Power
915 - 1090 W
Power density
28.96 - 34.49 kW/m²
Max. ambient temperature
500 °C
Pyrometer hole position
Without
Length
398 mm
Width
79 mm
Height
65 mm
Weight
1.5 kg
Approvals
CE
Protection class (IEC 60529)
IP20
Protection class
I
Highlights
Full-range, infrared radiation
Power density up to 32 kW/m² respectively 20.6 W/in²
