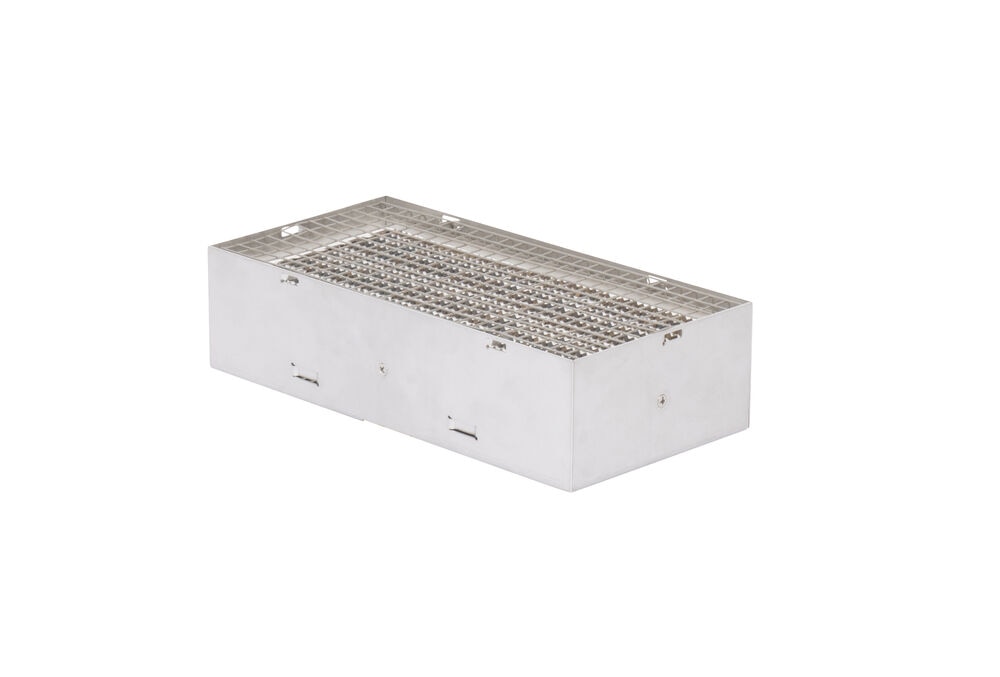

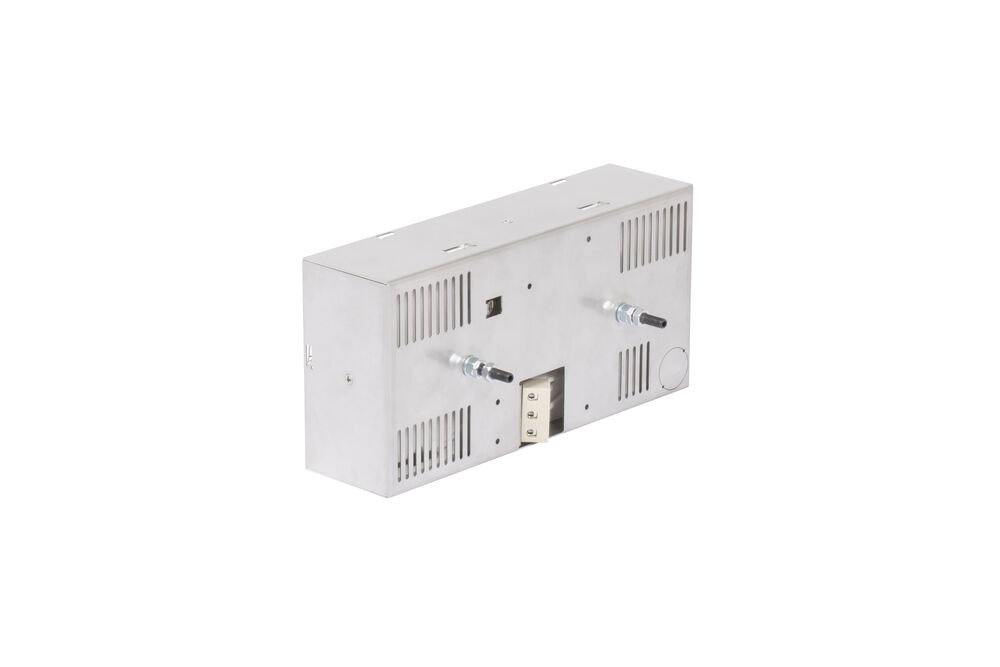

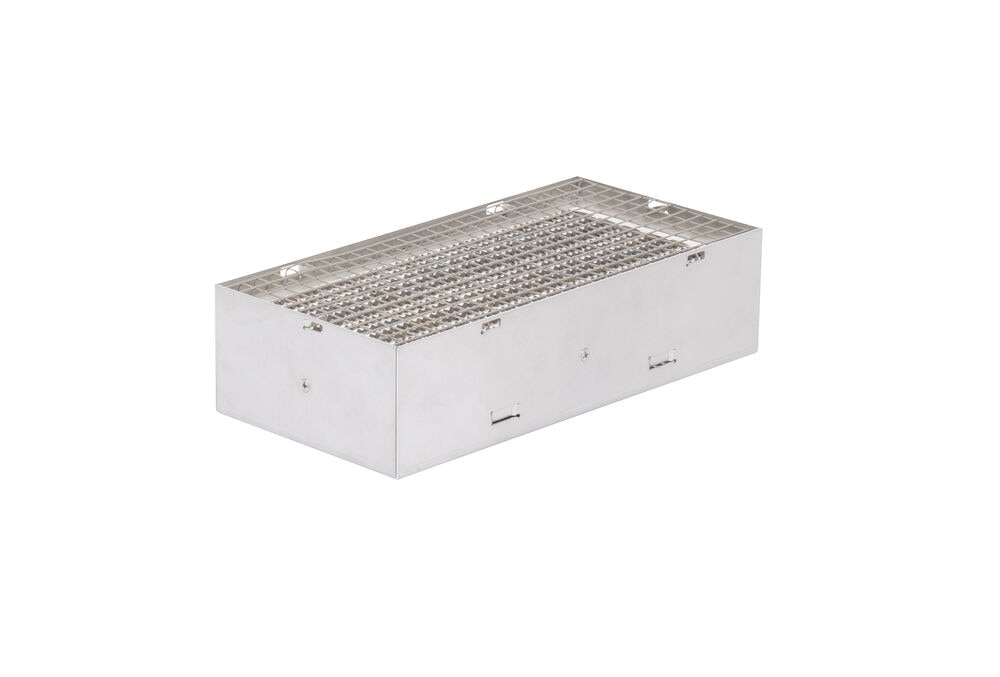

Infrared heater fields can be perfectly adapted to the needs of the user with the KRELUS MINI-MINI heaters from Leister, which are available in two sizes. The two models, KRELUS G14-25 MINI-MINI and G9-40 MINI-MINI provide short response times and emit medium-wave infrared radiatin with a peak wavelength of 2.5 µm - as all KRELUS infrared heaters. The MINI-MINI heaters are therefore best suited for most applications in textile-, plastics- and paper processing.
Technical Data
Metric
Imperial
Voltage
200 - 240 V
Current
4.16 - 5.42 A
Frequency
50/60 Hz
Power
904 - 1300 W
Power density
28.93 - 41.6 kW/m²
Max. ambient temperature
500 °C
Pyrometer hole position
Standard; Without
Length
248 mm
Width
123 mm
Height
65 mm
Weight
1.35 kg
Approvals
CE
Protection class (IEC 60529)
IP20
Protection class
I
Highlights
Best absorption
Maximum energy efficiency
Fast response times
No increased start-up current
Medium-wave IR radiation results in optimum absorption
Continuously controllable temperature up to 850 °C (1562 °F)
