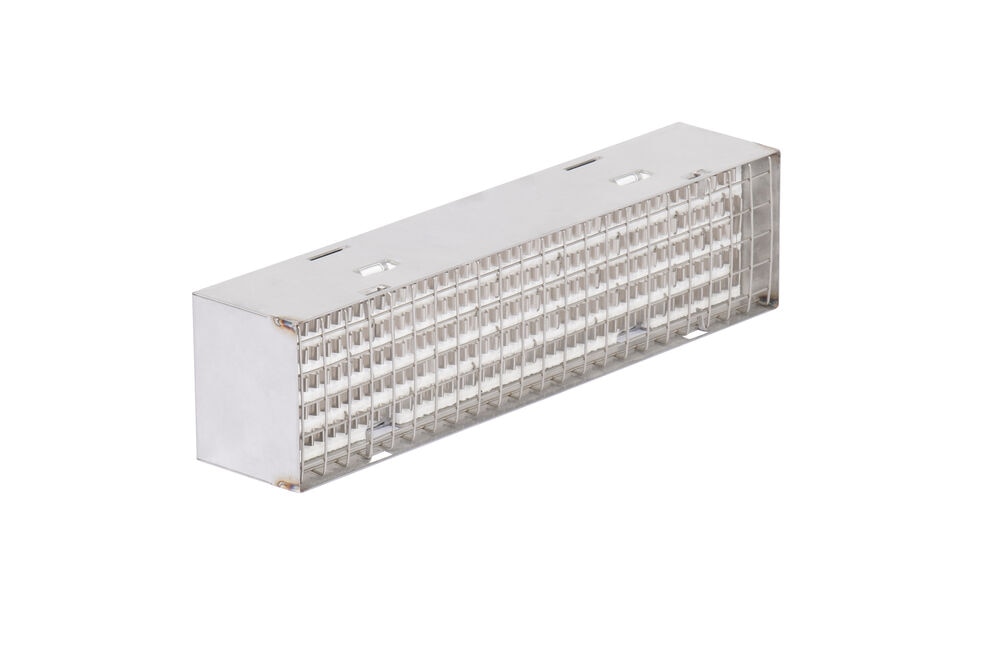

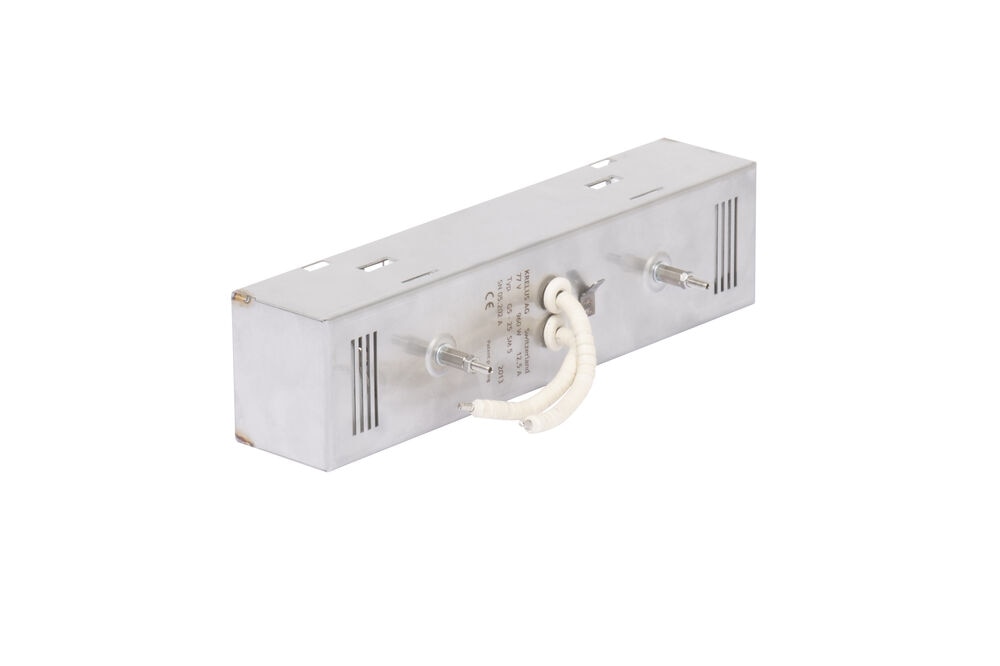

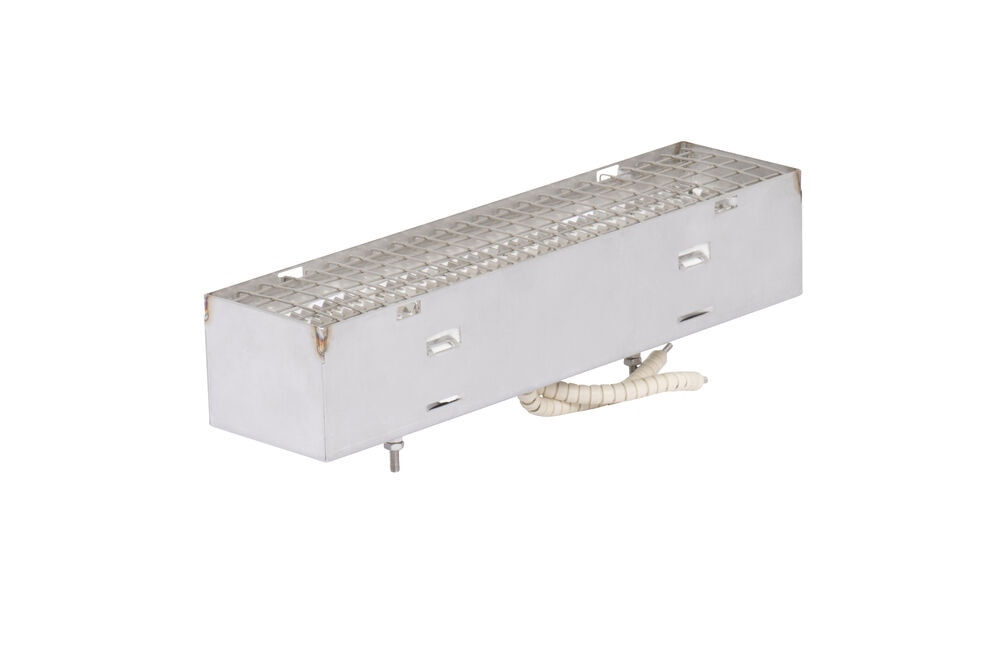

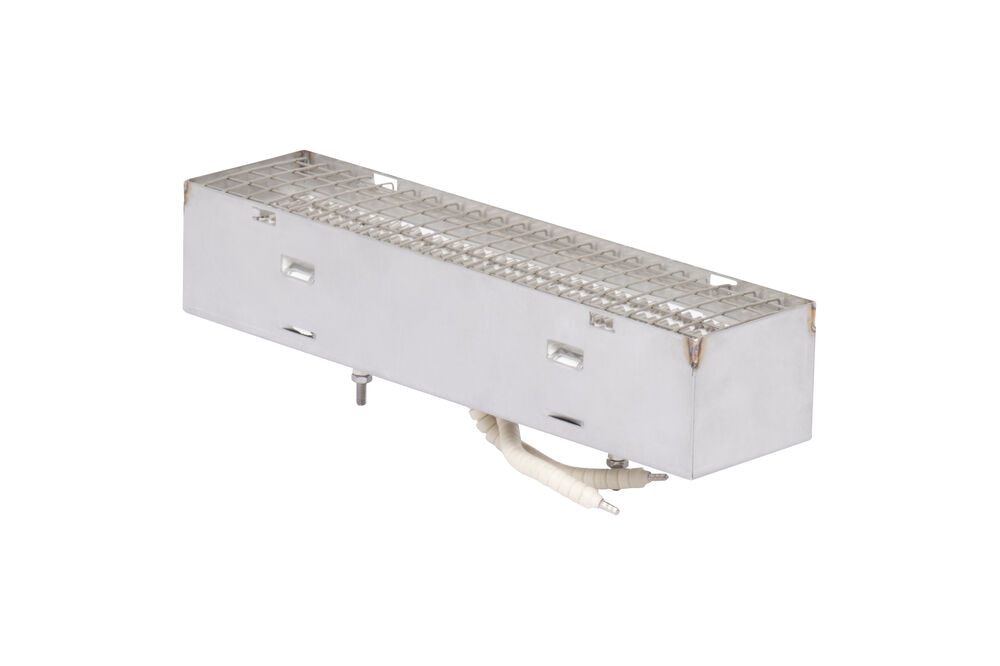

With dimensions at 248 x 61 x 50 mm / 9.77 x 2.4 x 1.96 in, the rectangular KRELUS G5-25 SUPER-MINI panel heater from Leister is extremely small and easy to integrate. KRELUS modular heaters can be used individually or in combination.
Technical Data
Metric
Imperial
Voltage
77 V
Current
7 - 12.5 A
Frequency
50/60 Hz
Power
540 - 960 W
Power density
34.56 - 61.44 kW/m²
Max. ambient temperature
500 °C
Pyrometer hole position
Standard; Without
Length
248 mm
Width
61 mm
Height
50 mm
Weight
0.6 kg
Approvals
CE
Protection class (IEC 60529)
IP20
Protection class
I
Highlights
Highest power density
Power density up to 60 kW/m² respectively 38.7 W/in²
